Permeable Paving
Integrated channel drains are an ideal linear solution to enhance the drainage, buffering and infiltration performance of both permeable, and non-permeable paved surfaces
Engineered to integrate
Compatible with the Hydrorock range of D blocks.
Highly versatile
Configurable to suit site requirements and to overcome unforeseen problems on site.
Flexible capacity
As blocks touch they form a unitary aquifer, so simply adding blocks adds capacity.
Aesthetically pleasing
Discreet profile prevents visual interruption.
High load-bearing options
94% absorption by volume
Slimline design

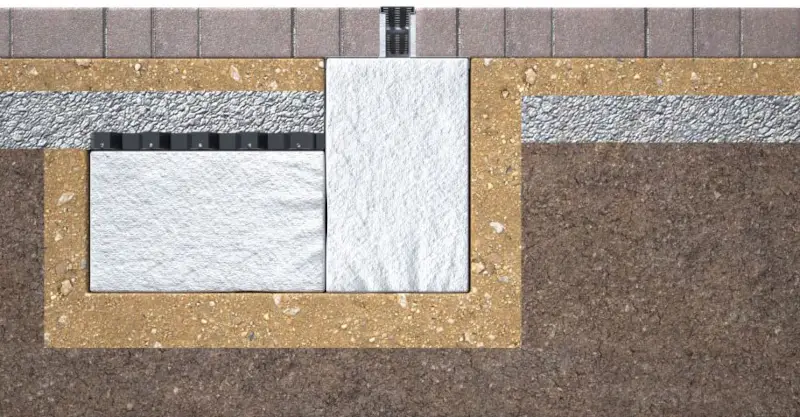

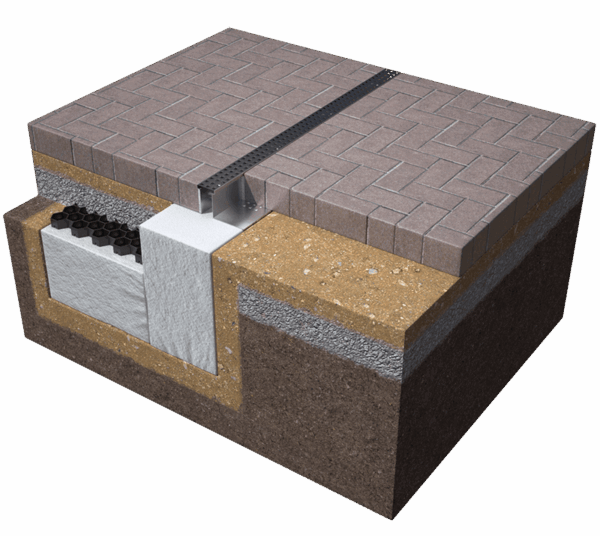

A linear solution to improve the drainage, buffering and infiltration capability of paved areas (permeable or other paving types).
- Engineered channel profile, designed for use with the Hydrorock range of natural aquifer D blocks
- As surface water drains through the channel it is buffered by the blocks below
- Simply add more Hydrorock blocks for more capacity
- Where blocks touch, water transfers between them, increasing capacity
- Blocks are highly configurable to suit varied sites
- Flexibility enables in-ground challenges to be overcome on site, avoiding time and cost overruns
- 94% absorption to volume ratio
- Natural material
- Recyclable
- Requires minimal excavation
- Fully compatible with other Hydrorock infiltration, attenuation or filter drain systems
- Up to 40-tonne load-bearing capacity
- Lifetime system integrity
Design Detailing
Resources
Downloads
Hydrorock Linear Drainage
Calculator
Click here to visit our partner Hydrorock’s calculator to quickly assess the number and volume of Hydrorock natural aquifer blocks that will be required for your application.
Products
Our natural aquifer blocks are available to provide 100% sustainable, 100% recyclable water management solutions.
Installation
Installation is very simple and quick with minimal disruption. Blocks are pre-wrapped with filter membrane, so the excavation needs to be only as large as the system (no access is required to fit the membrane).
- No specialist installation engineering or equipment is needed, with simple snap-together fittings.
- Blocks are typically laid in a module three blocks wide. This enables the system to self-vent, and should the filters be compromised by human error, the entire system can be flushed.
- Perforated pipes that are integrated within the BD blocks allow rapid water inflow and storage in each block, underground.
- Extra capacity can be added quicky and easily with the installation of further blocks.
- Unlike crated sumps, Hydrorock systems offer the flexibility to be fitted around existing infrastructure, such as pipes and cable, for total site optimisation.
- Laying the system on a 100mm layer of sand will enable infiltration from the module into the surrounding soil, allowing the water to slowly flow from the aquifer blocks.
